Design reference 93 · Avant-garde & experimental
Gesture Index
A drawn shape can be a precise invitation to an existing collection.
Download design ZIP · Open interactive specimen
Design specification
Idea. A drawn shape can be a precise invitation to an existing collection.
Composition. A large pale drawing field holds charcoal strokes, small numbered specimen marks and a handwritten-seeming retrieval trail. Shape buttons provide an equally visible alternative to drawing.
Navigation and complete example. Draw a line on the canvas or choose arch, zigzag, loop or branch. A small deterministic classifier retrieves original objects from a labelled fixture set; inspect records and save a constellation.
Responsive and inclusive behaviour. The SVG drawing pad uses pointer capture and a bounded drawing surface. All retrievals are also available through native shape buttons, with no drawing requirement. All controls are native buttons or labelled inputs. Movement is discretionary, no sound starts automatically, reduced-motion preferences remove transitions, and a direct index exposes the same content.
Adaptation. Keep the relationship between query shape and retrieved content legible. Explain the classifier’s limits instead of implying a general visual search engine. Retain the relationship between navigation and content. Do not reduce the reference to a generic hero followed by interchangeable cards.
Research. [Zach Lieberman / Data Arts Team — Land Lines](https://experiments.withgoogle.com/land-lines). These are conceptual precedents, not copied artwork, source code, branding or text. All diagrams and sample writing in this specimen are original, fictional material.
Files for a coding model
Reference images

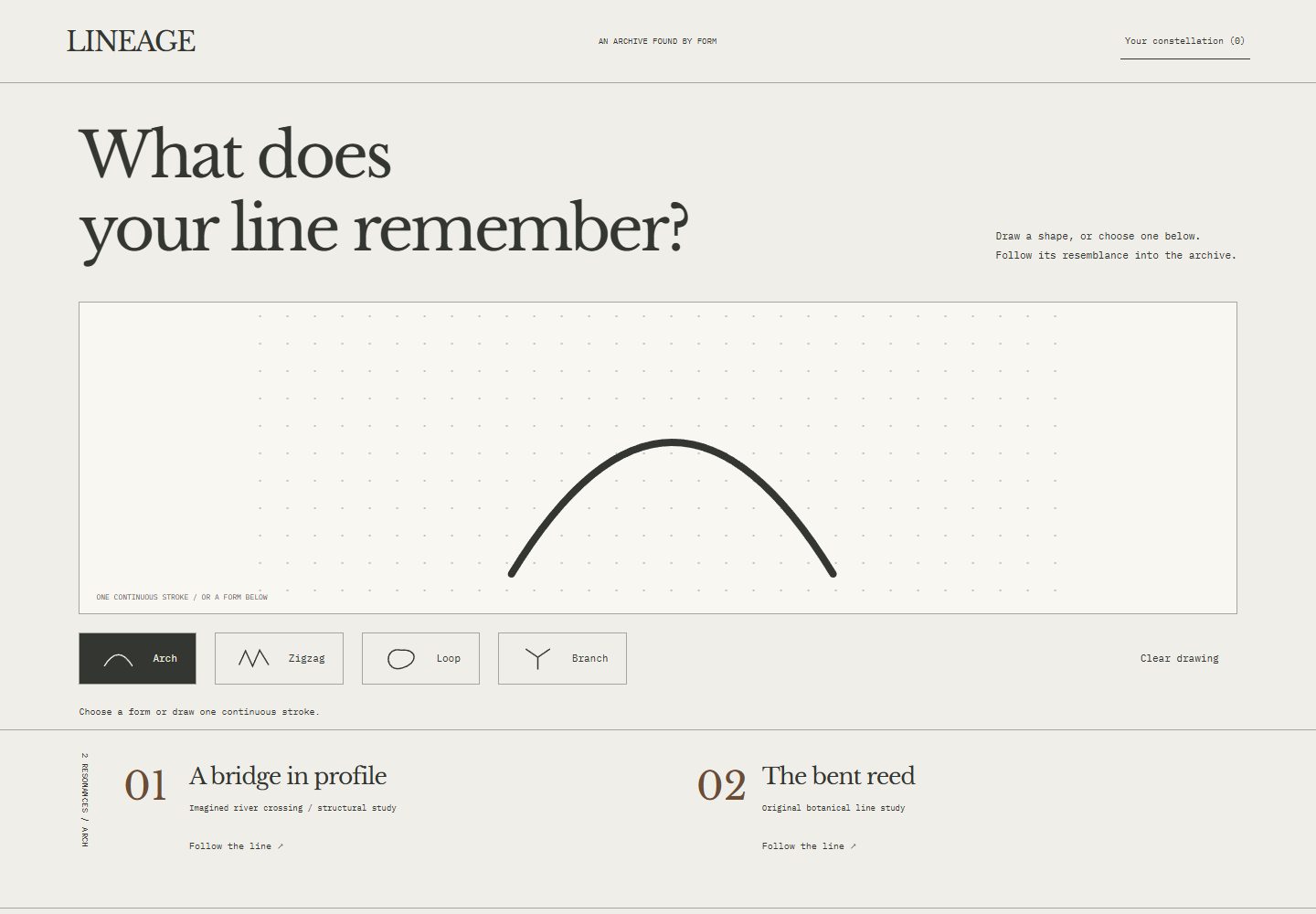

- Desktop — 1440 × 1000 viewport

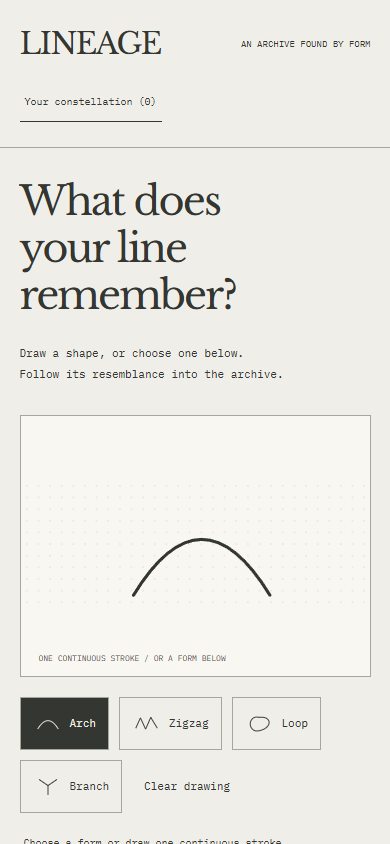

- Phone — 390 × 844 viewport

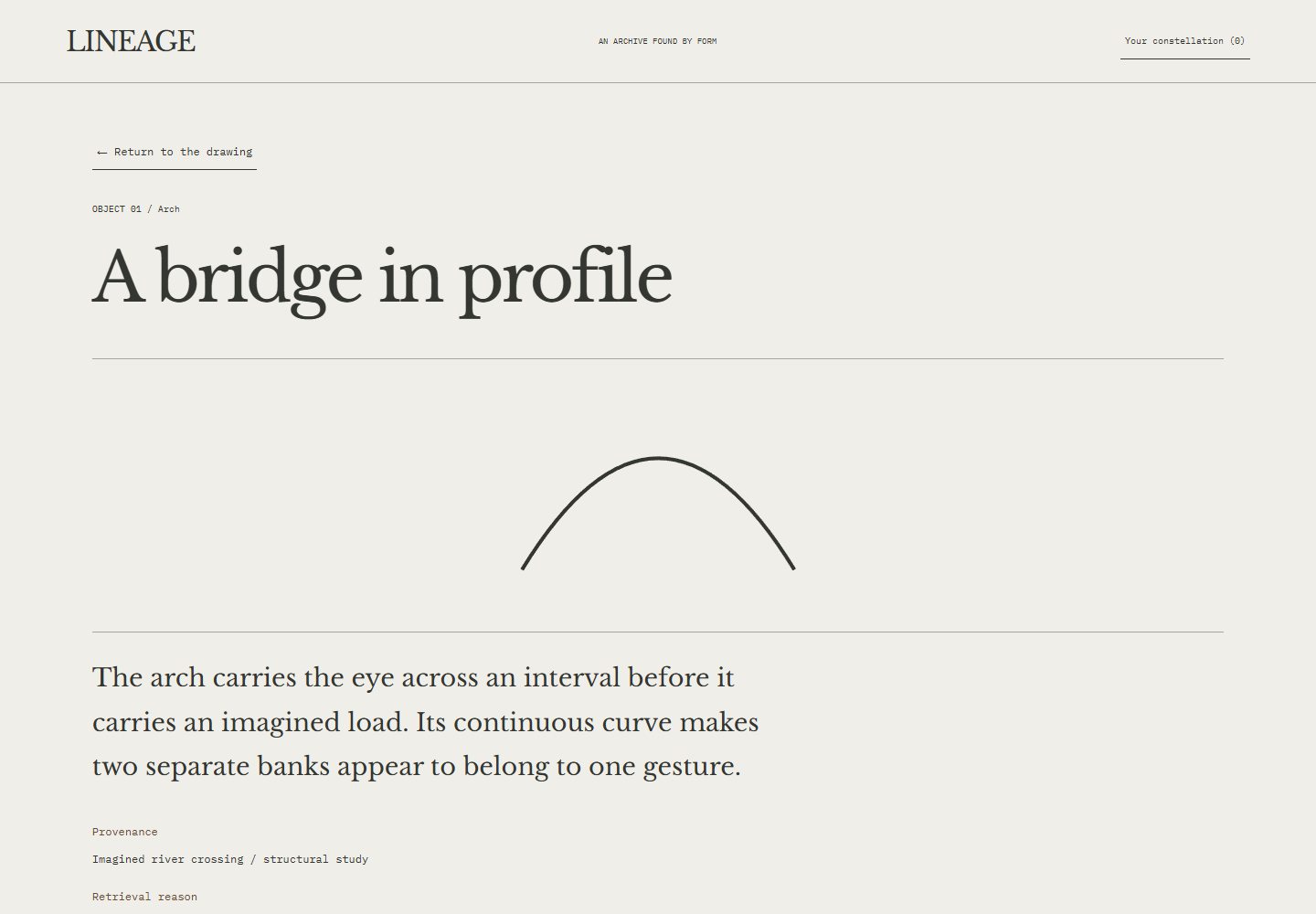

- Supporting state — 1440 × 1000 viewport

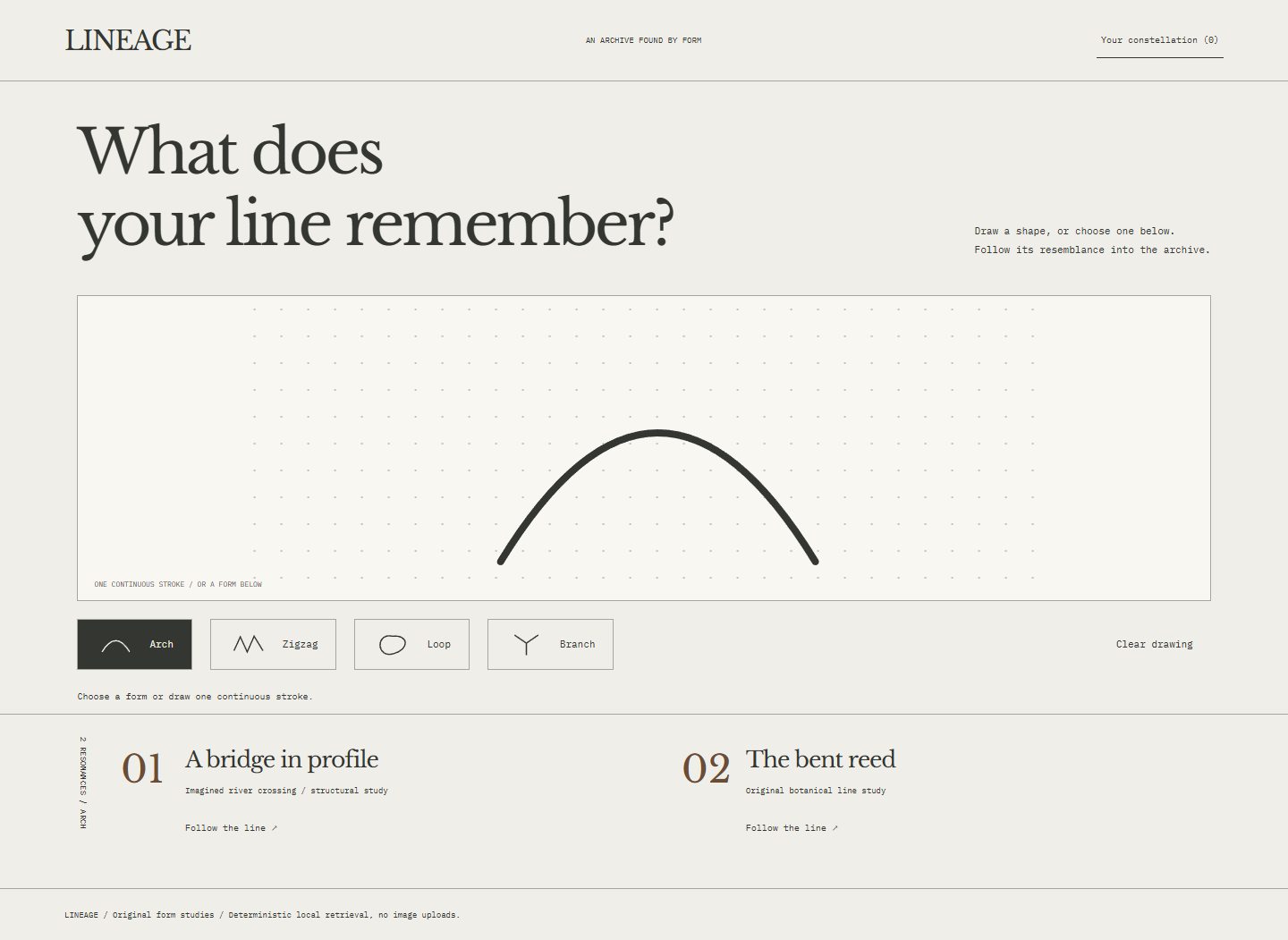

- Full page — 1440 × 1000 viewport
Supporting routes
Reuse
Use and adapt the original code and specifications for personal or commercial work under MIT. Keep applicable font and photo notices. The ZIP includes the complete runnable reference and its local assets.
