Design reference 17 · Workspaces & discovery
Observatory
Help users detect patterns, compare measures, and inspect uncertainty within a coherent instrument panel.
Download design ZIP · Open interactive specimen
Design specification
Philosophy and fit. Help users detect patterns, compare measures, and inspect uncertainty within a coherent instrument panel. Suitable for analytics, monitoring, scientific demonstrations, and resource tracking.
Visual grammar. Use a dark, quiet plotting surface with a persistent control strip and aligned charts sharing meaningful time axes. A technical sans, monospace readouts, muted grid lines, and restrained cyan, amber, and violet series colours support inspection. Keep charts large enough to read; choose panels because their measures relate, not because a grid needs filling.
Specimen and flow. *Watershed Observatory* displays clearly labelled synthetic river measurements. Users change a date interval, compare two stations, and inspect a selected reading. Supporting states provide a data table and a missing-data interval with its cause explained in fixture text.
Adaptation and identity. Mobile presents plots in a meaningful sequence and replaces small hover targets with selectable readings. Preserve scales, units, labels, and distinctions between missing and zero values; avoid animated counters, fake live activity, and ornamental gauges. Effort: high.
Files for a coding model
Reference images

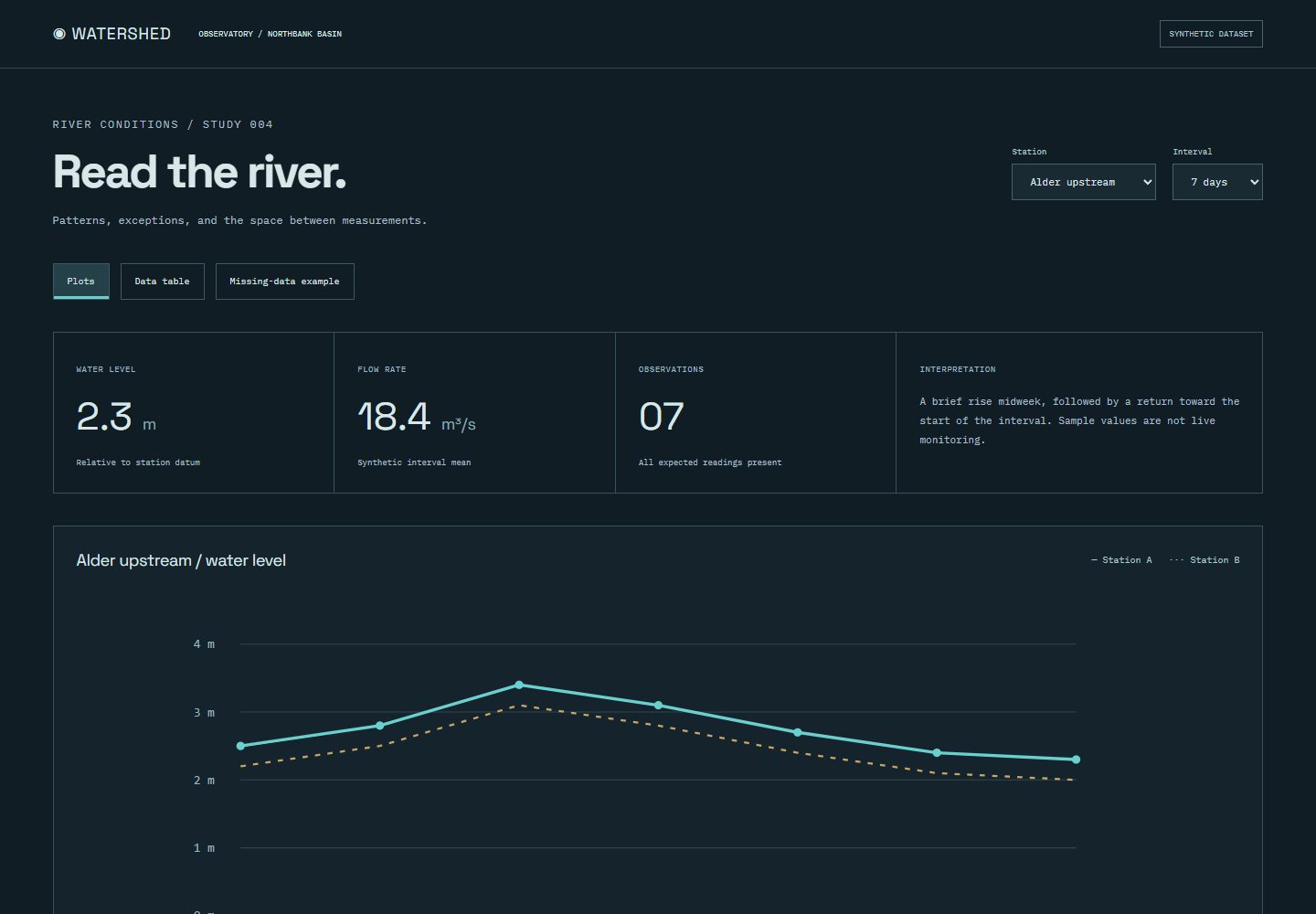

- Desktop — 1440 × 1000 viewport

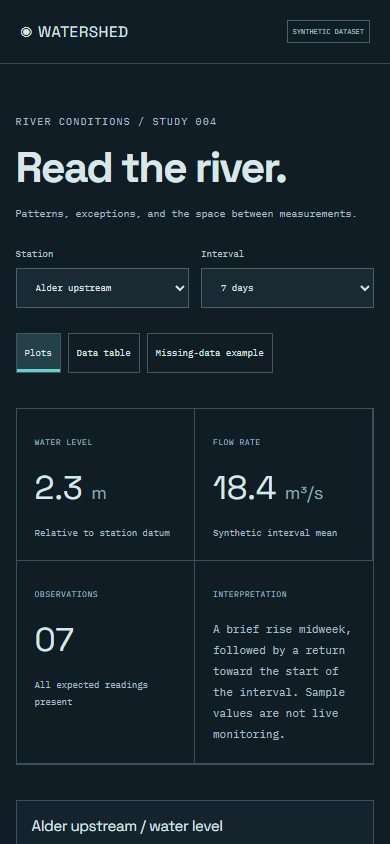

- Phone — 390 × 844 viewport

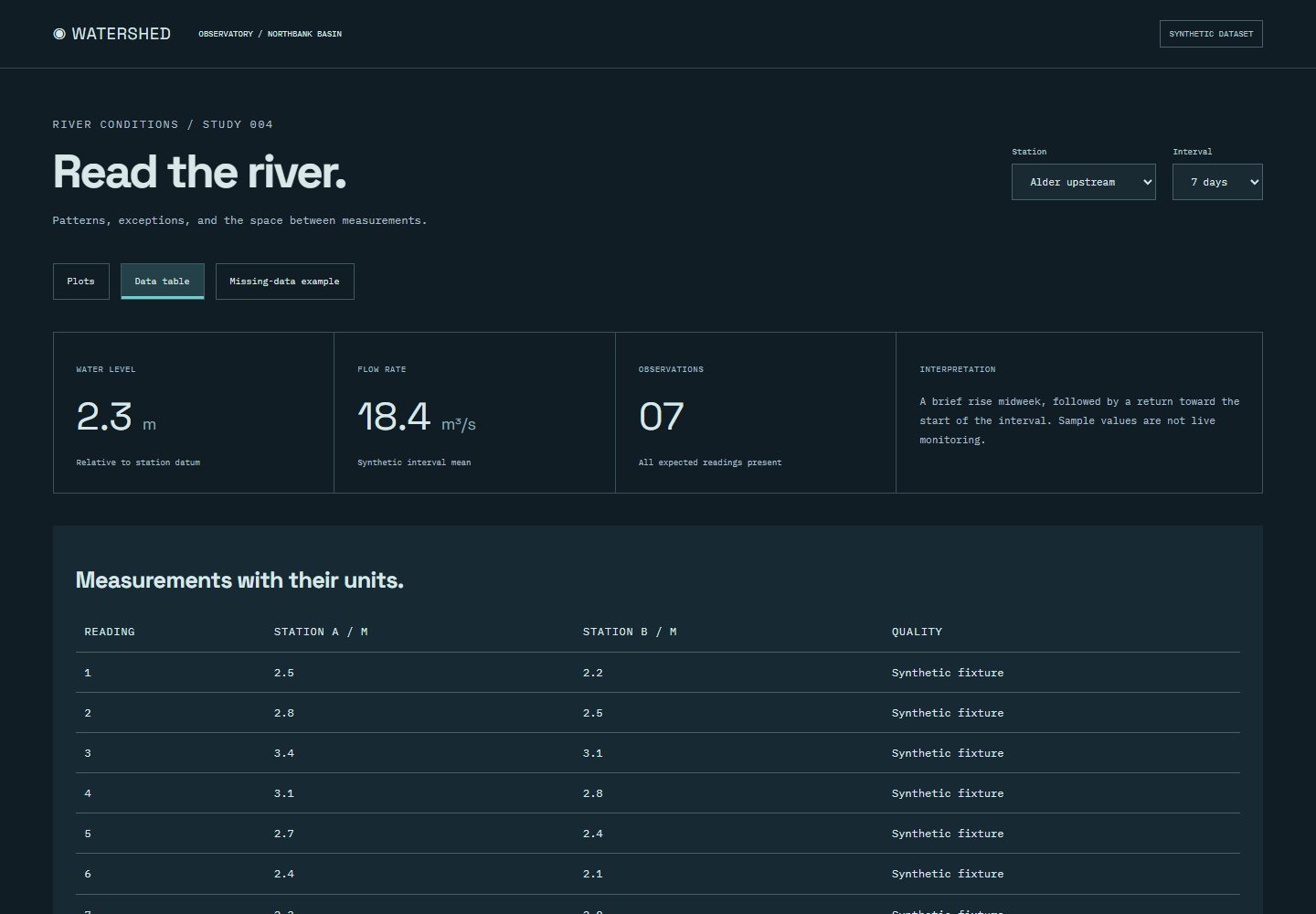

- Supporting state — 1440 × 1000 viewport

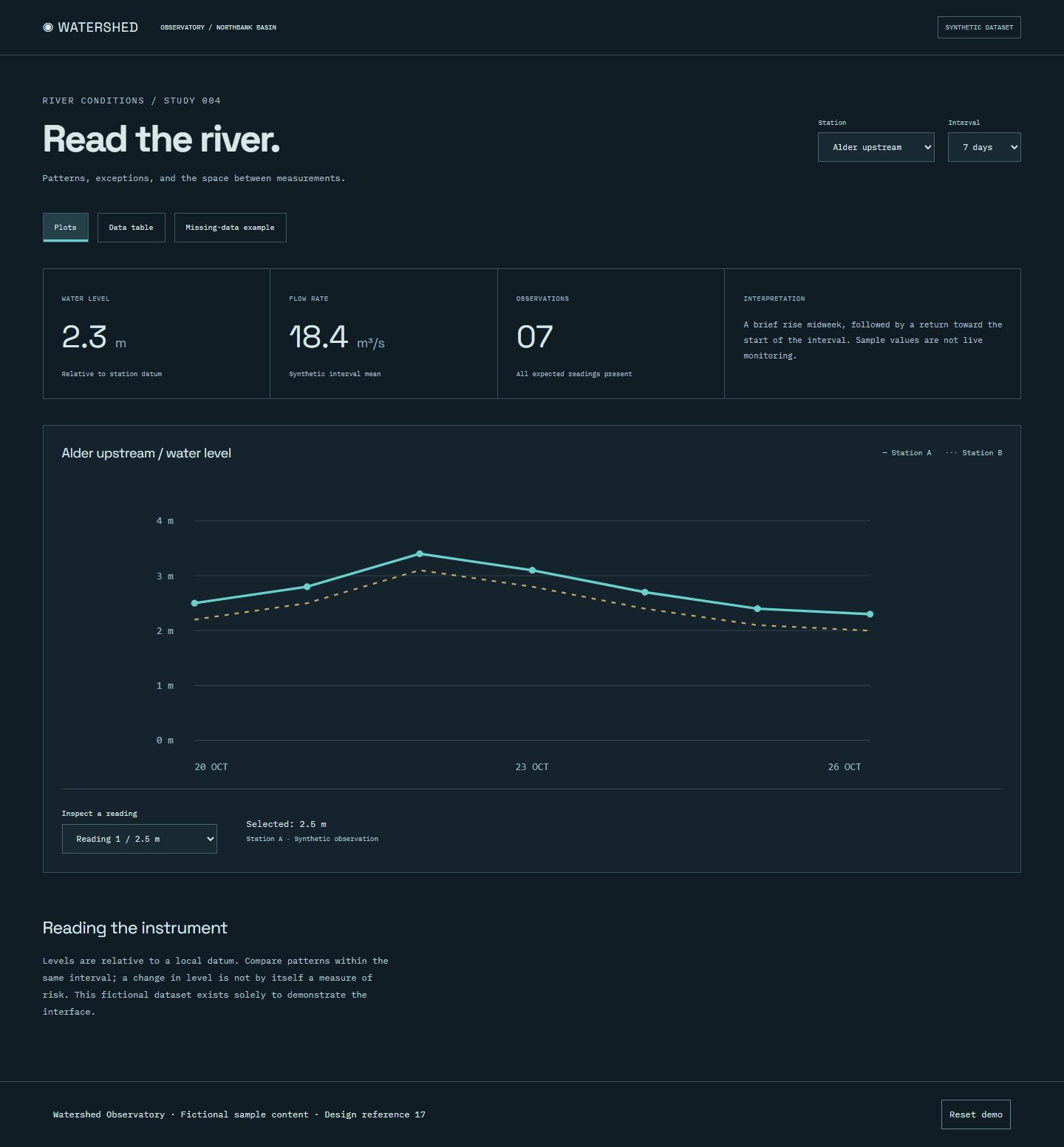

- Full page — 1440 × 1000 viewport
Supporting routes
Reuse
Use and adapt the original code and specifications for personal or commercial work under MIT. Keep applicable font and photo notices. The ZIP includes the complete runnable reference and its local assets.
